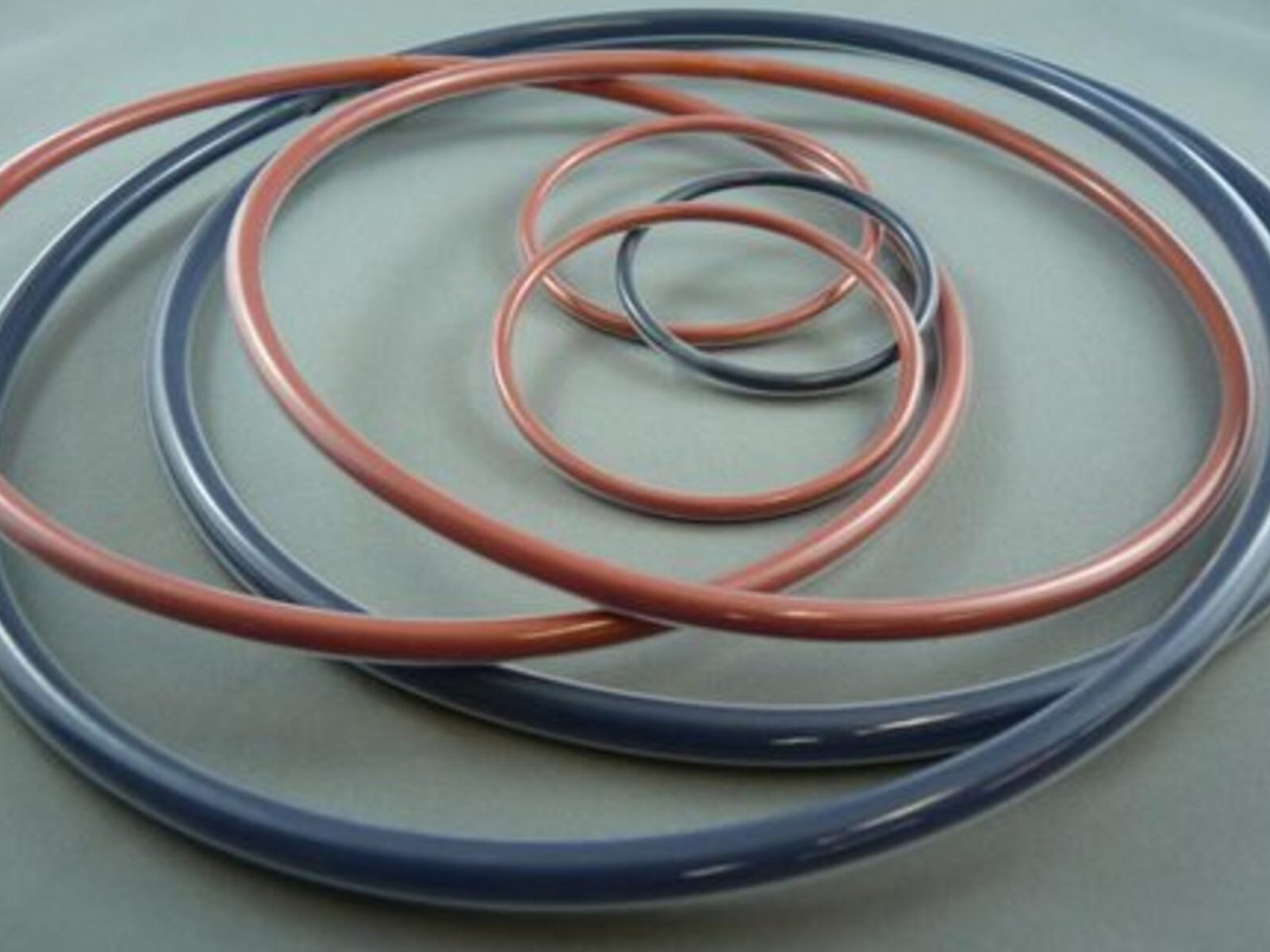

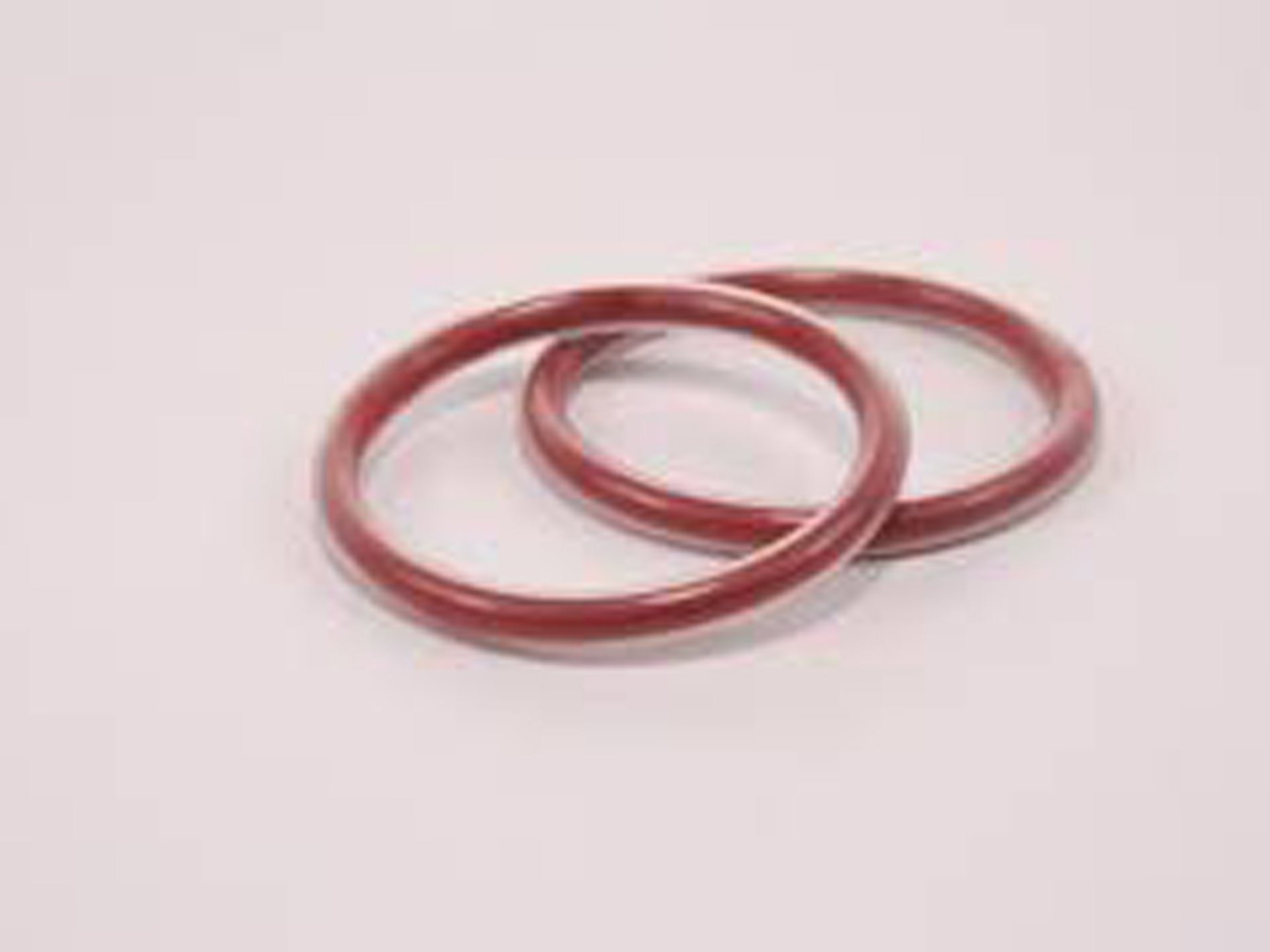

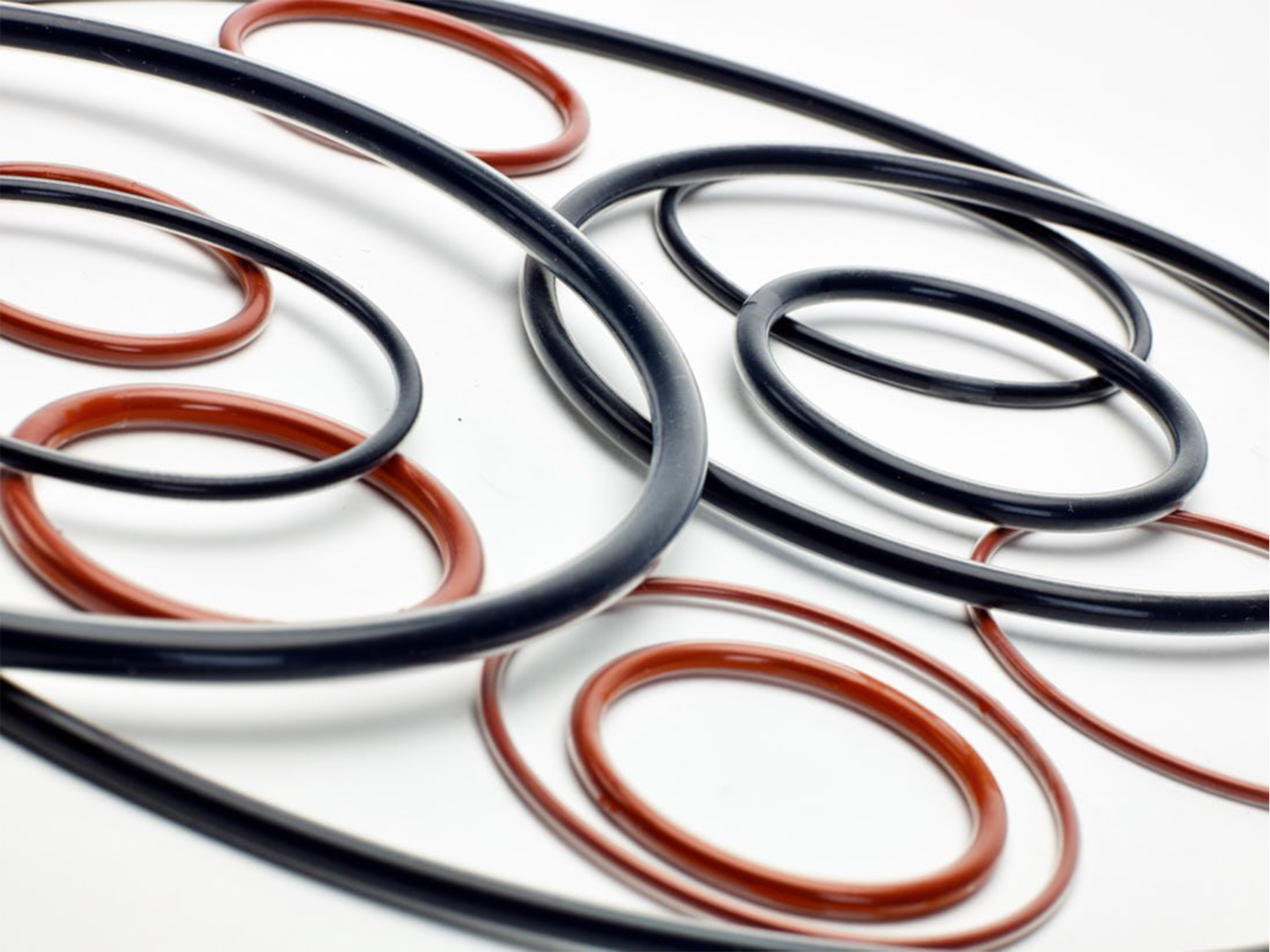

FEP Encapsulated O Ring

FEP Encapsulated O Ring

FEP Encapsulated O-rings are engineered to combine the superior chemical resistance and non-stick properties of fluoropolymer (FEP) with the flexibility and sealing capabilities of various elastomer cores. This innovative design ensures exceptional performance in applications requiring high chemical resistance, temperature stability, and reliable sealing.

Core Materials :

• Silicone Core :
  •   Temperature Range : -60°C to +200°C
  •   Chemical Resistance : Good resistance to a broad spectrum of chemicals and environmental conditions.
  •   Features : Provides exceptional flexibility and resilience at extreme temperatures, making it ideal for applications with high temperature variations and frequent movements.
• Viton Core :
  •   Temperature Range : -20°C to +200°C
  •   Chemical Resistance : Superior resistance to oils, fuels, and many chemicals, making it well-suited for harsh chemical environments.
  •   Features : Enhances mechanical strength and chemical resistance, ensuring durability in demanding applications.
• EPDM Core :
  •   Temperature Range : -50°C to +150°C
  •   Chemical Resistance : Excellent resistance to water, steam, and a range of chemicals, including alkalis and acids.
  •   Features : Provides good flexibility and resilience in a wide range of temperatures, making it suitable for applications involving steam or hot water. The EPDM core offers excellent aging properties and resistance to weathering.

Key Properties :

• Temperature Range : -20°C to +200°C
  •   The FEP coating maintains its integrity across a broad temperature range, while each elastomer core (Silicone, Viton, or EPDM) contributes its specific temperature and flexibility benefits.
• Chemical Resistance : Excellent
  •   FEP coating delivers superior protection against harsh chemicals, acids, and solvents, while the elastomer core enhances the O-ring’s flexibility and overall performance.

Features :

•   High Chemical Resistance : FEP’s non-reactive surface protects against chemical attack, while the elastomer core ensures a flexible, reliable seal.
•   High Temperature Tolerance : Maintains performance under extreme temperatures, with the FEP coating preventing degradation and the core material providing additional temperature-specific benefits.
•   Excellent Sealing Capabilities : Combines the FEP coating’s sealing properties with the core’s flexibility to ensure minimal leakage and robust sealing.

Applications :

•   Chemical Processing : Perfect for environments with exposure to aggressive chemicals, where the FEP coating offers chemical protection and the elastomer core provides necessary flexibility.
•   Pharmaceutical Manufacturing : Ensures contamination-free operation with the non-reactive properties of FEP and the elastomer core's flexibility, critical for pharmaceutical processes.
•   Petrochemical Industries : Handles fuels, lubricants, and other petrochemical products effectively, with Viton cores offering additional resistance to oils and EPDM cores handling steam and hot water applications.

Why Choose FEP Encapsulated O-Rings?

•   Versatile Core Options : Choose from Silicone, Viton, or EPDM cores to meet specific performance needs.
•   Enhanced Performance : The FEP coating combined with the chosen elastomer core delivers unmatched chemical resistance, temperature stability, and flexibility.
•   Custom Solutions : The FEP coating combined with the chosen elastomer core delivers unmatched chemical resistance, temperature stability, and flexibility.
•   Reliable and Durable : Proven performance in extreme conditions, ensuring long-term reliability and reduced maintenance needs.
