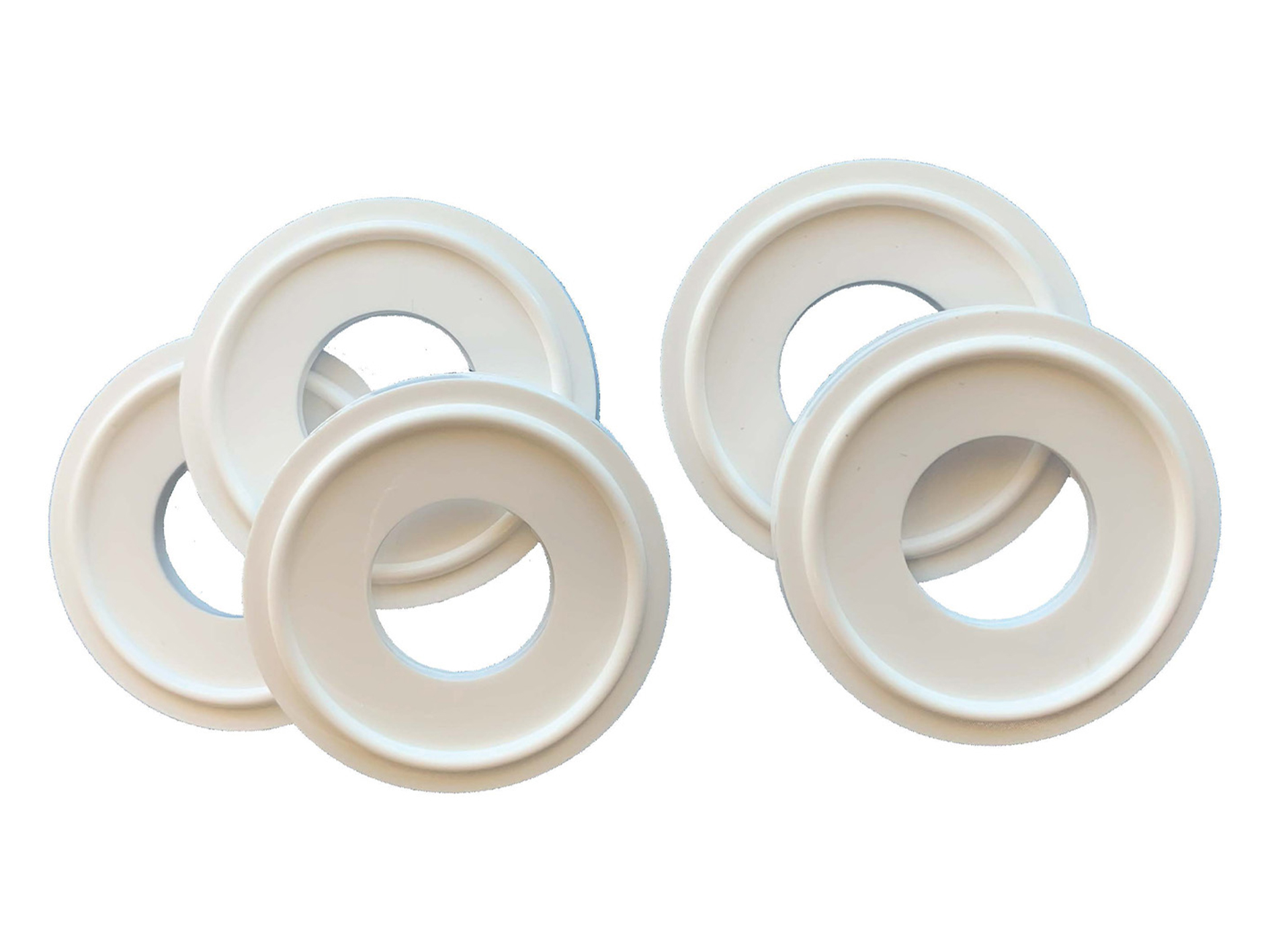

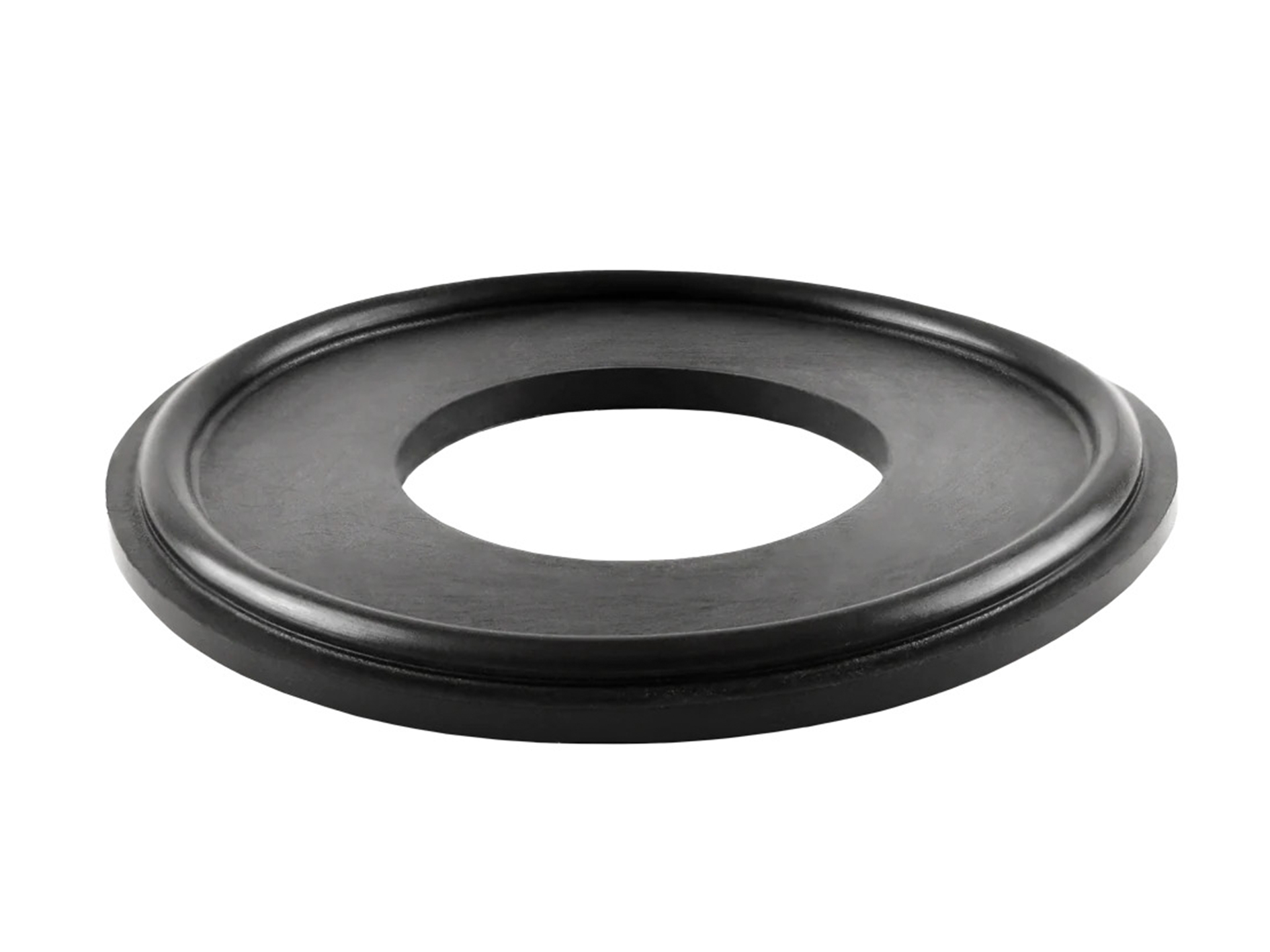

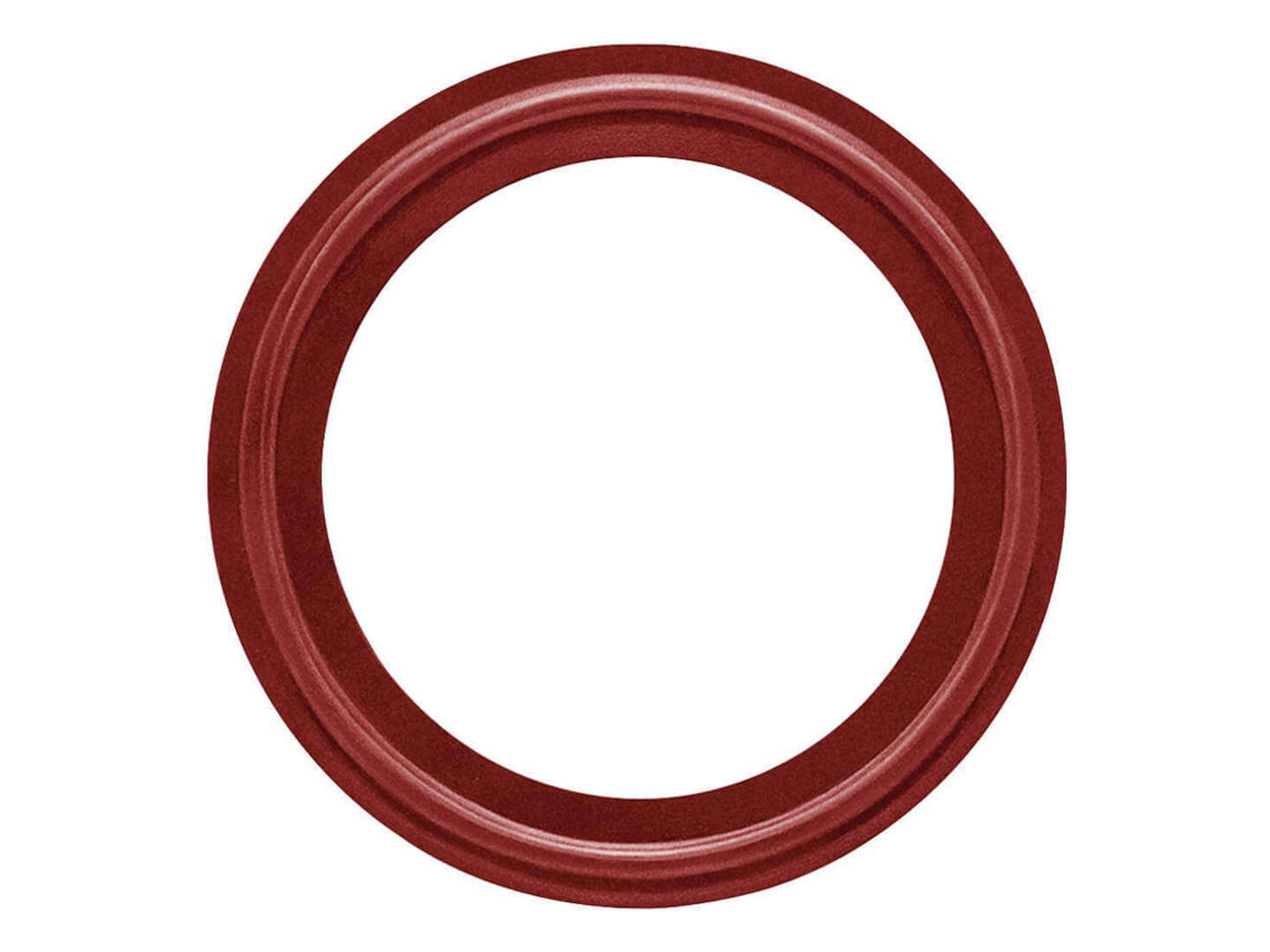

Rubber Tri-Clover Gaskets
Rubber Tri-Clover Gaskets are essential components used to create a secure seal in tri-clover or tri-clamp connections. These gaskets ensure a leak-proof seal in various applications, including food and beverage processing, pharmaceuticals, and industrial systems.
Key Properties :
- Material Options : Silicone, Viton, Nitrile, Neoprene, EPDM
- Temperature Range : Typically -40°C to +120°C, depending on the rubber type.
- Features :
Excellent flexibility and compression set resistance.
Good resistance to water, oils, and various chemicals.
Provides a reliable seal in tri-clover fittings, preventing leakage and contamination.
Applications :
- Food and beverage processing
- Pharmaceutical and biotech industries
- Industrial piping systems
Technical Specification :

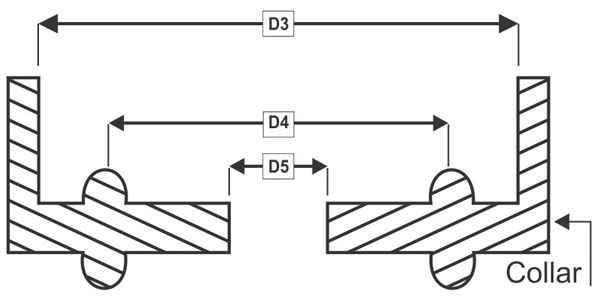

| Normal Size | D3 | D4 | D5 |
|---|---|---|---|
| 1/2” | 34.0 | 27.5 | 10.9 |
| 1/2” (Mini) | 22.0 | 17.0 | 09.5 |
| 3/4” | 34.0 | 27.5 | 15.4 |
| 1” | 50.5 | 43.5 | 22.8 |
| 1 1/2” | 50.5 | 43.5 | 35.8 |
| 2” | 64.0 | 56.5 | 48.8 |
| 2 1/2 | 77.5 | 70.5 | 60.5 |
| 3” | 91.0 | 83.5 | 73.1 |
| 4” | 118.0 | 110.0 | 96.0 |
