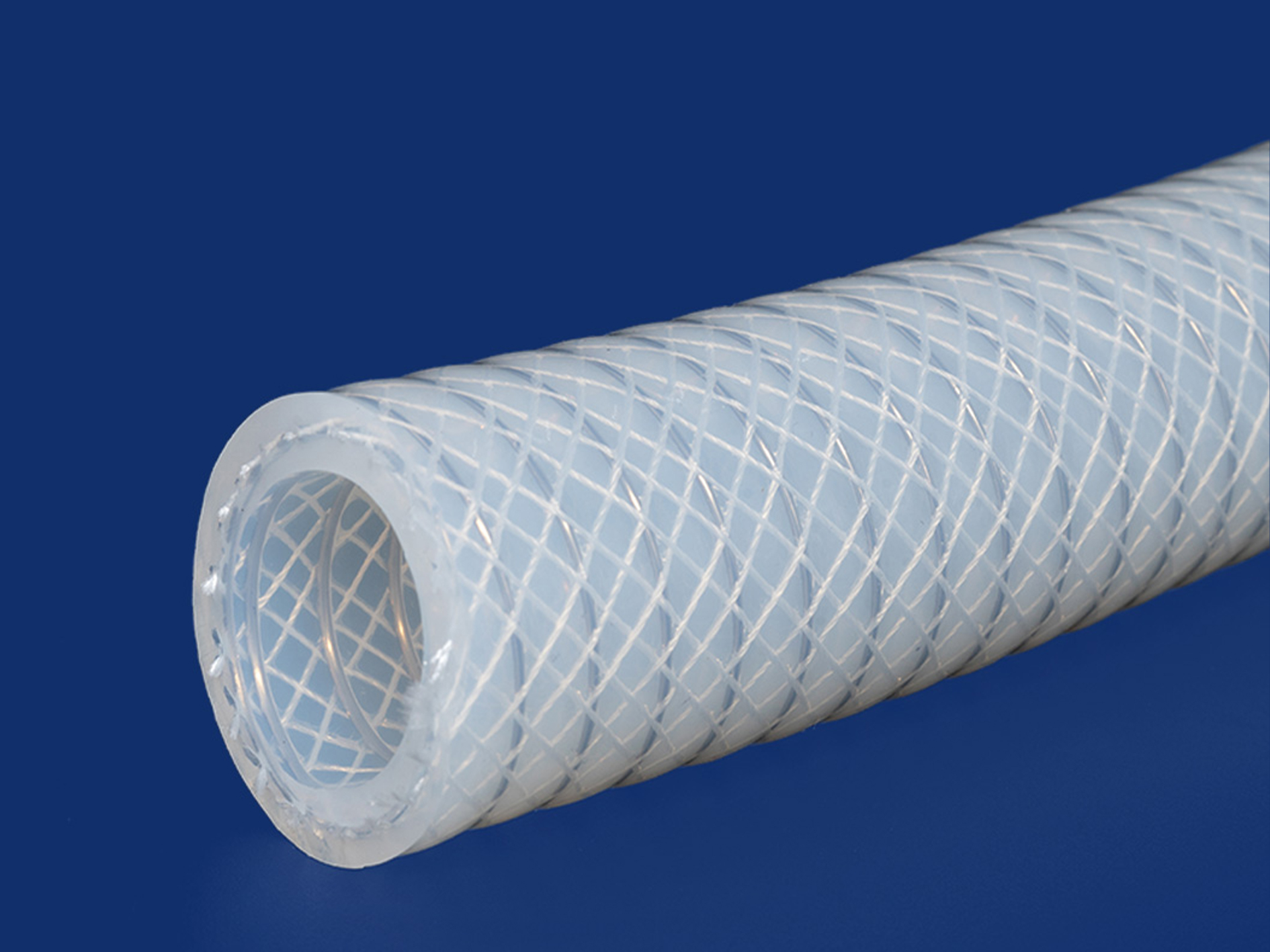

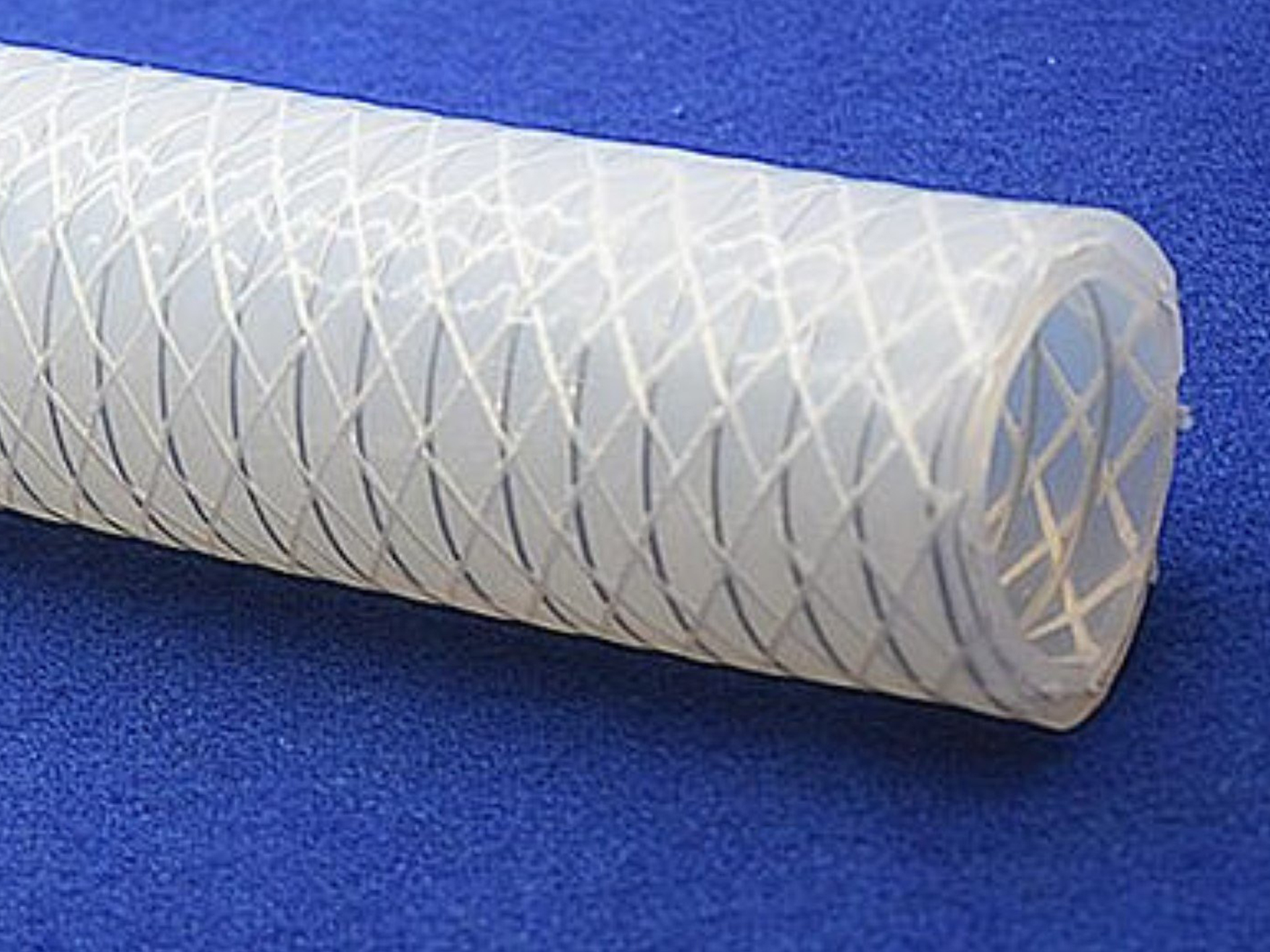

Platinum Cured Silicon Hose Reinforced With Polyester Braiding and SS 316L Helical Wire HiPoTorr(Platinum)
Himsan Polymer Platinum-cured silicone hoses reinforced with polyester braiding and SS316L helical wire are specialized hoses used in various industries for their exceptional flexibility, durability, and high purity standards. These hoses are commonly utilized in applications that require high levels of cleanliness, such as the pharmaceutical, biotech, food, and beverage industries.
Key Features :
- Available with SS 316L Tri-clover Ensures high purity and biocompatibility.
- Resistant to a wide range of chemicals.
- Low extractables and leachables.
- Maintains flexibility over a broad temperature range.
- Having high burst pressure resistance compare to HiPoFlex & HiPoVacc
- Designed for high vacuum rating applications
- Having Antistatic properties to dissipate static electrical charge makes it suitable for highly volatile & Flammable Liquid transfer
- Imparts no taste and odor
- Lot traceable
- Temp Range: -40 °C TO 180°C
- Sterilizable by Autoclave,
- Ethylene oxide gas & gamma
- Radiation
- Laser marking of “Brand names & Logo” available
Reinforcement :
Polyester Braiding :
- Provides additional strength and pressure resistance.
- Enhances the hose's flexibility and kink resistance.
Polyester Braiding :
- Adds structural support and crush resistance.
- Ensures the hose maintains its shape under vacuum conditions.
- Provides resistance to high-pressure applications.
Polyester Braiding :
- High Purity : Ideal for applications requiring minimal contamination.
- Temperature Resistance : Suitable for both high and low-temperature applications.
- Flexibility : Easier to install and maneuver in tight spaces.
- Durability : Long service life due to the robust construction.
- Compliance : Meets stringent industry standards and regulatory requirements.
Polyester Braiding :
- Pharmaceutical and Biotech : Used for fluid transfer in drug manufacturing, lab applications, and cleanroom environments.
- Food and Beverage : Ideal for processing and transferring food and drink products, ensuring no contamination.
- Medical Devices : Suitable for medical applications requiring high purity and flexibility.
Certifications :
- DMF No - 29761 from US FDA
- Certificate of Conformity
- Laboratory Certificate
- Food Grade Certificate
- USP Class VI Certificate
- German BFR xv Certificate
- TSE / BSE Certificate
- RoHS Certificate
- France Arrete du 25 Certificate
- ISO 10993 Certificate
| SILICONE SS WIRE BRAIDED HOSE POLYESTER BRAIDED WITH SS 316 HELICAL WIRE INSERT |
|||||||
|---|---|---|---|---|---|---|---|
| PART NO | SIZE IN MM (ID X OD) |
SIZE IN INCH (ID X OD) |
MAX WORKING PRESSURE IN (Bar) at 27° C |
MIN BURST PRESSURE IN (Bar) at 27° C |
MIN BEND RADIUS IN (MM) |
VACUUM Hg @70° F/27° C IN (MM) |
|
| PTF-H6P13 | 6x13 | 1/4” | 12.5 | 48.5 | 60 | 760 | |
| PTF-H9P16 | 9x16 | 11/32” | 12.0 | 48.0 | 70 | 760 | |
| PTF-H12P20 | 12x20 | 1/2” | 11.0 | 41.5 | 70 | 760 | |
| PTF-H16P24 | 16x24 | 5/8” | 10.5 | 36 | 85 | 760 | |
| PTF-H19P27 | 19x27 | 3/4” | 9.0 | 34.5 | 95 | 760 | |
| PTF-H25P35 | 25x35 | 1” | 8.5 | 34.5 | 140 | 760 | |
| PTF-H32P42 | 32x42 | 1.25” | 8.5 | 34.5 | 150 | 600 | |
| PTF-H37P47 | 37x47 | 1.5” | 7.5 | 32 | 175 | 600 | |
| PTF-H50P62 | 50x62 | 2” | 6.5 | 28 | 245 | 550 | |
| PTF-H64P76 | 64x76 | 2.5” | 4.1 | 20.5 | C/P | 500 | |
