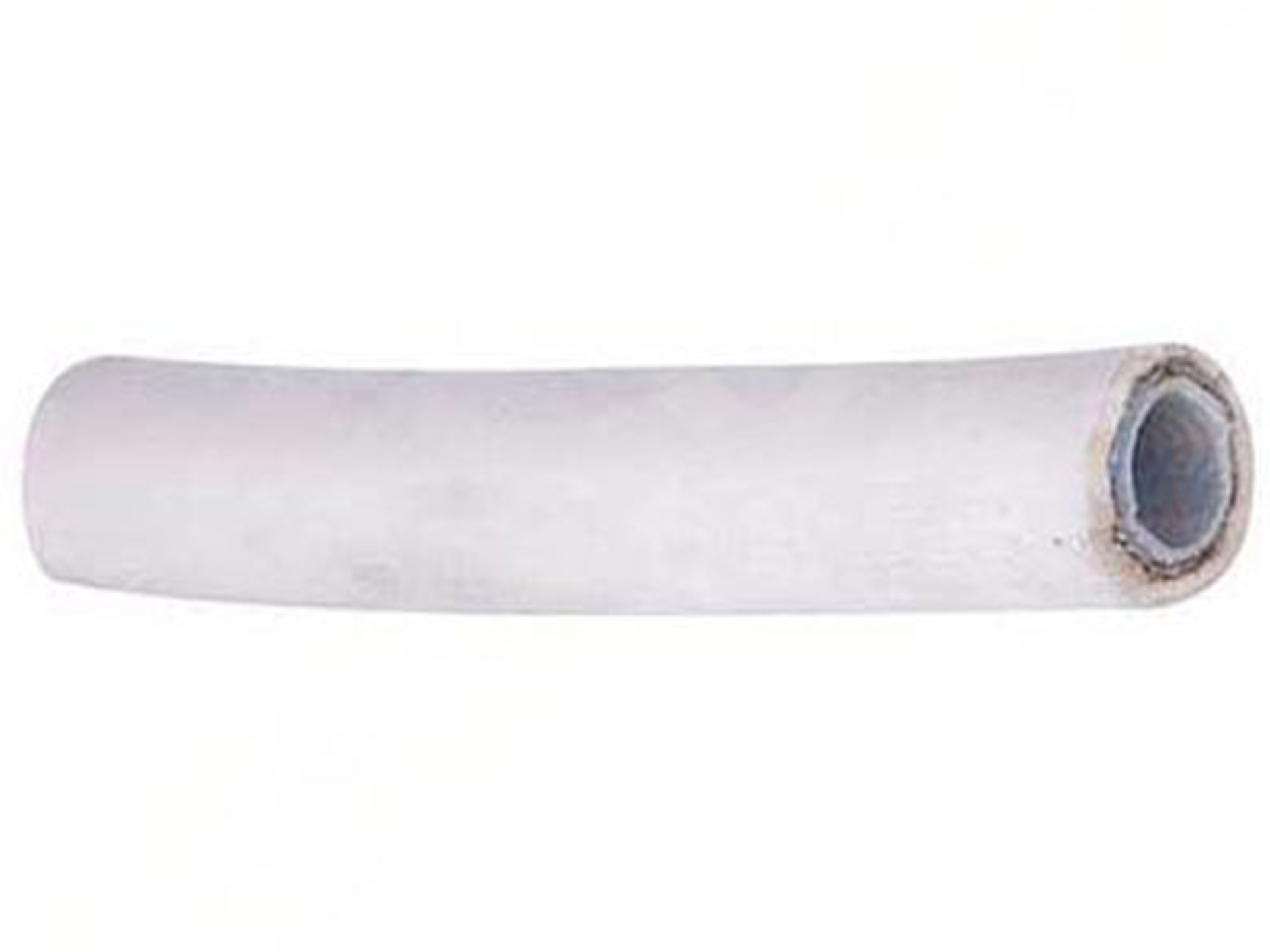

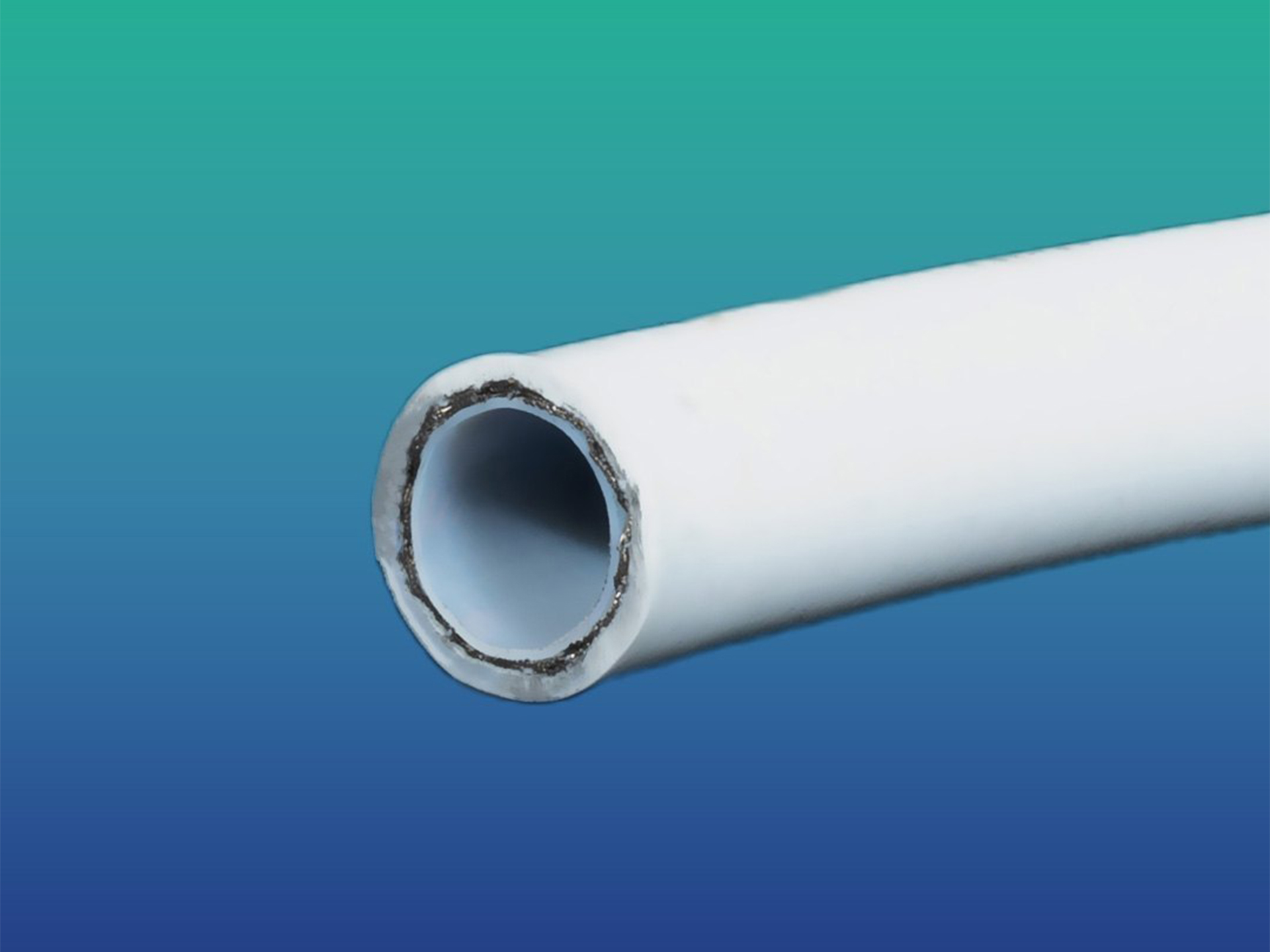

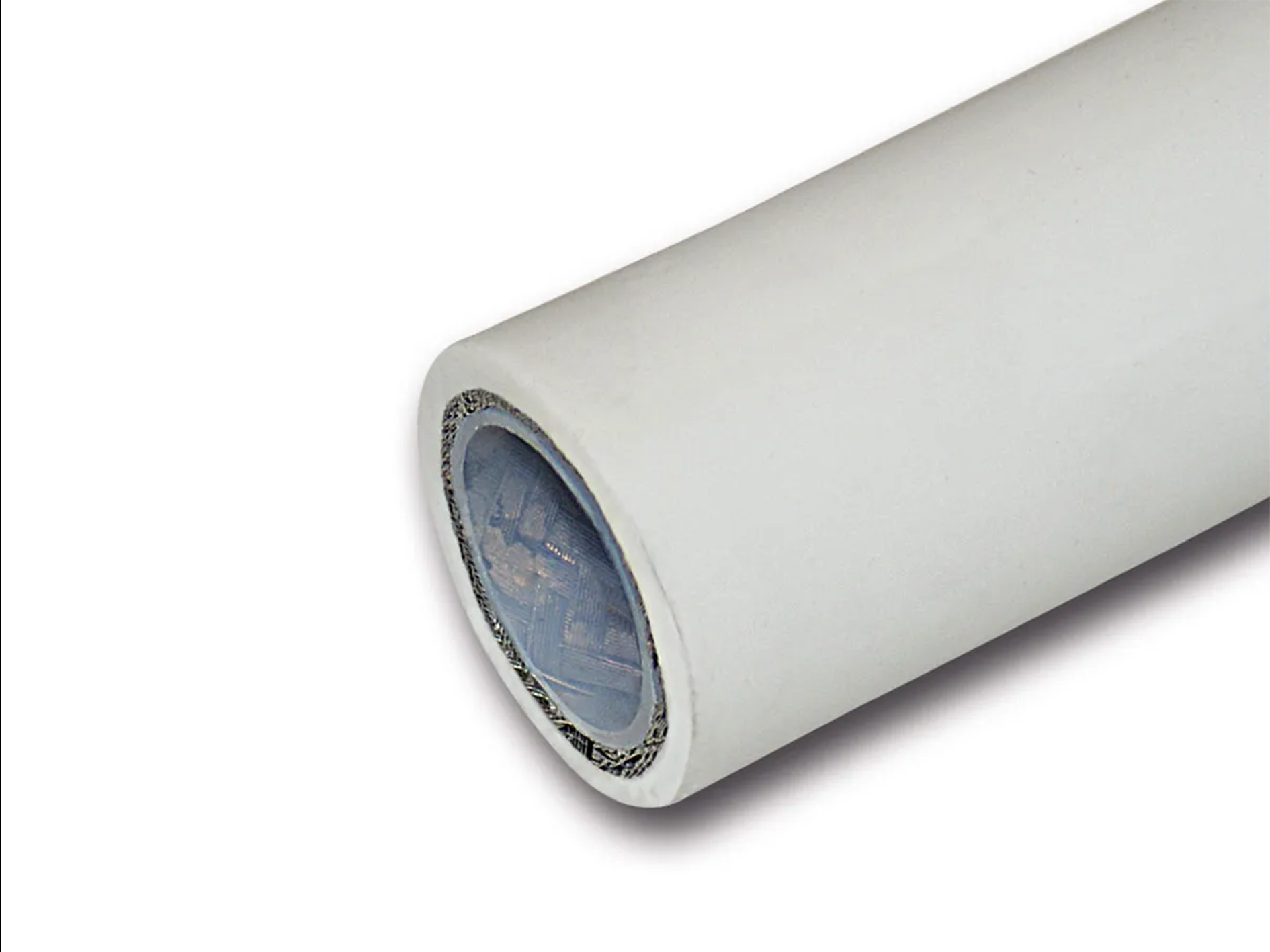

PTFE Lined Hose with SS 304 Braiding, Covered with Peroxide Cured Silicon Rubber HiPoTeff (Classic)
HiPoTeff (Classic) is PTFE Lined Hose with SS 304 Braiding, Covered with Peroxide Cured Silicon Rubber having. HiPoTeff is having capacity to withstand high pressure along with greater chemical resistance. The product is having ultra-smooth bore which enhances superior flow properties & least adhesion to particulates. The outer layer of Silicone cover acts as insulation to high temperature and keeps outer surfaces dust free.
Laser marking of “Brand names & Logo” available
Features of our HiPoTeff Hoses :
- Chemical Resistance : PTFE is highly resistant to almost all chemicals, making it suitable for handling corrosive substances.
- High Temperature Resistance : PTFE can withstand high temperatures up to 280°C without losing its properties.
- Low Friction : PTFE has one of the lowest coefficients of friction among solid materials, which makes it ideal for applications requiring smooth movement.
- Non-Stick Properties : PTFE has non-stick characteristics, preventing materials from adhering to its surface.
- Electrical Insulation : PTFE is an excellent insulator of electricity, making it useful in electrical and electronic applications.
- Biocompatibility : PTFE is biocompatible and is often used in medical and food-grade applications.
Applications of Our HiPoTeff Hoses :
- Chemical Processing : Used for transporting aggressive chemicals and solvents.
- Medical Devices : Employed in catheters, endoscopes, and other medical instruments.
- Electrical Insulation : Utilized in wiring and cable insulation due to its high dielectric properties.
- Food and Beverage Industry : Suitable for handling food and beverages as it does not react with food substances.
- Pharmaceutical Industry : Used in drug manufacturing and processing due to its non-reactivity.
| Sr. No. | Size In MM (ID x OD) | Size in Inch (ID) | Max Working Pressure IN (Bar) At 27°C | Min Burst Pressure IN (Bar) At 27°C | Min Bend Radius In (MM) | Vacuum Hg 27°C In (MM) |
|---|---|---|---|---|---|---|
| 1 | 6x13 | 1/4” | 125 | 375 | 80 | NA |
| 2 | 9x16 | 11/32” | 100 | 300 | 130 | NA |
| 3 | 12x20 | 1/2” | 90 | 270 | 170 | NA |
| 4 | 16x24 | 5/8” | 80 | 240 | 200 | NA |
| 5 | 19x27 | 3/4” | 50 | 150 | 220 | NA |
| 6 | 25x35 | 1” | 40 | 120 | 350 | NA |
| 7 | 32x42 | 1 1/4” | 35 | 105 | 400 | NA |
| 8 | 37x47 | 1 1/2” | 35 | 105 | C/P | NA |
| 9 | 50x62 | 2” | 30 | 90 | C/P | NA |
