Peroxide Cured Silicone Hose Reinforced with 2 to 3 Ply of Polyester fabric and SS 316L Helical Wire HiPoWrap (Classic)

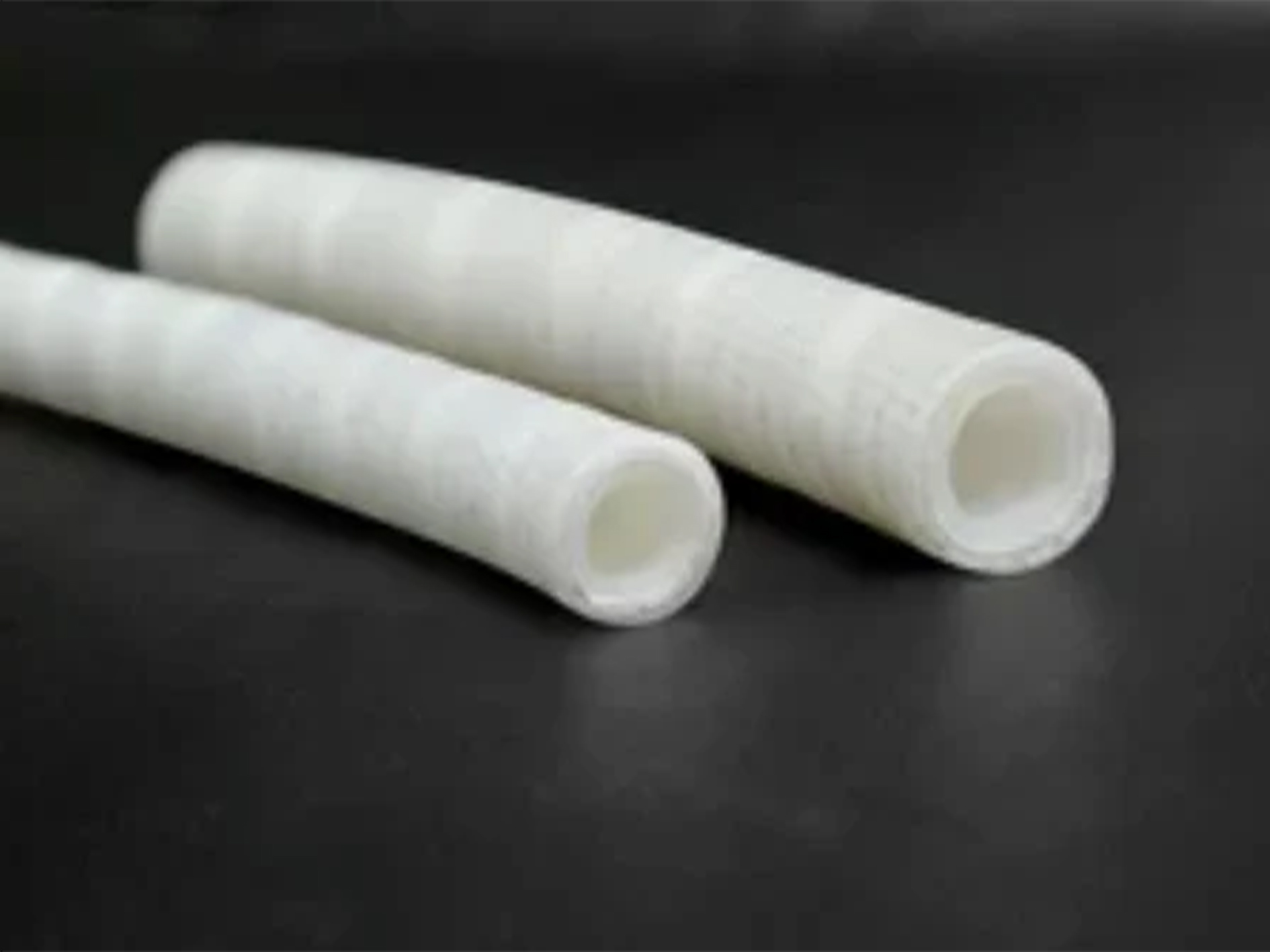

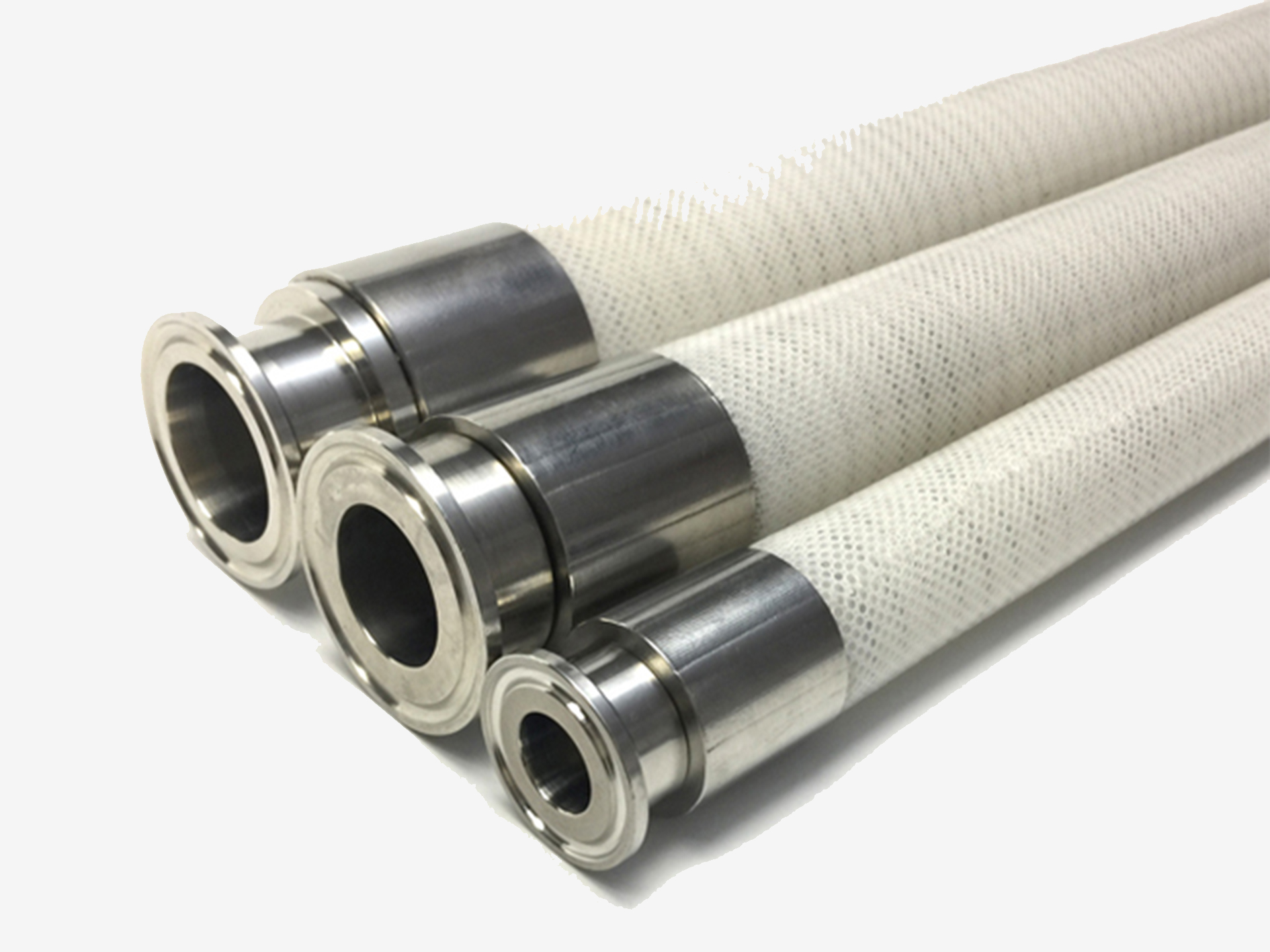

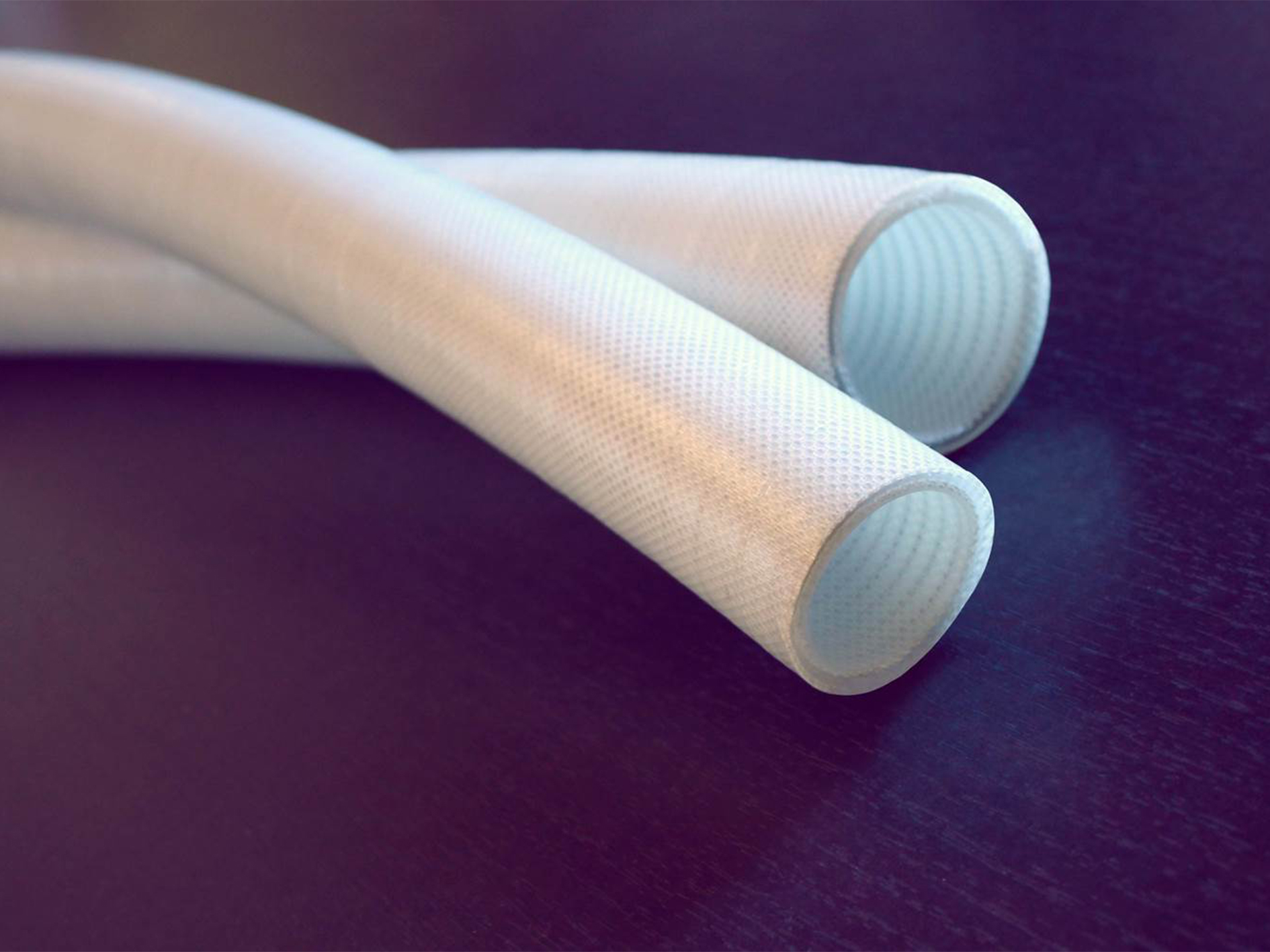

HiPoWrap (Classic) is Peroxide cured Silicone hose reinforced with SS 316L Helical wire and 2-3 layers of polyester and fabric wrapping. Himsan Polymer supply superb quality of HiPoWrap, having multiple layers of high quality polyester fabric to enhance burst Pressure rating.
The product is suitable for high pressurized Steam transfer application in pharmaceutical and biotech.
Applications :
- Pharmaceutical processing
- Food processing
- Load cell application
- CIP, WFI transfer application
- Bulk powder transfer
- Fermentation and bioreactors
- High pressurized Steam transfer
| Sr. No. | Size In MM (ID x OD) | Size in Inch (ID) | Max Working Pressure IN (Bar) At 27°C | Min Burst Pressure IN (Bar) At 27°C | Min Bend Radius In (MM) | Vacuum Hg 27°C In (MM) |
|---|---|---|---|---|---|---|
| 1 | 6x13 | 1/4” | 18.5 | 38 | 60 | 760 |
| 2 | 9x16 | 11/32” | 18.0 | 38 | 70 | 760 |
| 3 | 12x20 | 1/2” | 16.0 | 38 | 80 | 760 |
| 4 | 16x24 | 5/8” | 14.0 | 34 | 90 | 760 |
| 5 | 19x27 | 3/4” | 12.0 | 34 | 100 | 760 |
| 6 | 25x35 | 1” | 10.5 | 34 | 120 | 760 |
| 7 | 32x42 | 1 1/4” | 10.0 | 32 | 180 | 500 |
| 8 | 37x47 | 1 1/2” | 10.0 | 32 | 220 | 400 |
| 9 | 50x62 | 2” | 8.0 | 30 | 300 | 300 |
| 10 | 64x76 | 2 1/2” | 6.0 | 24 | 350 | C/P |
| 11 | 75x87 | 3” | 5.0 | 15 | C/P | C/P |
| 12 | 100x112 | 4” | 5.0 | 15 | C/P | C/P |
